Dispensing with the DOBOT MG400 robot
Koszty sprzętu:
DOF
4
Powtarzalność
0,05
mm
Udźwig
0,75
kg
Implementation of a dispensing task

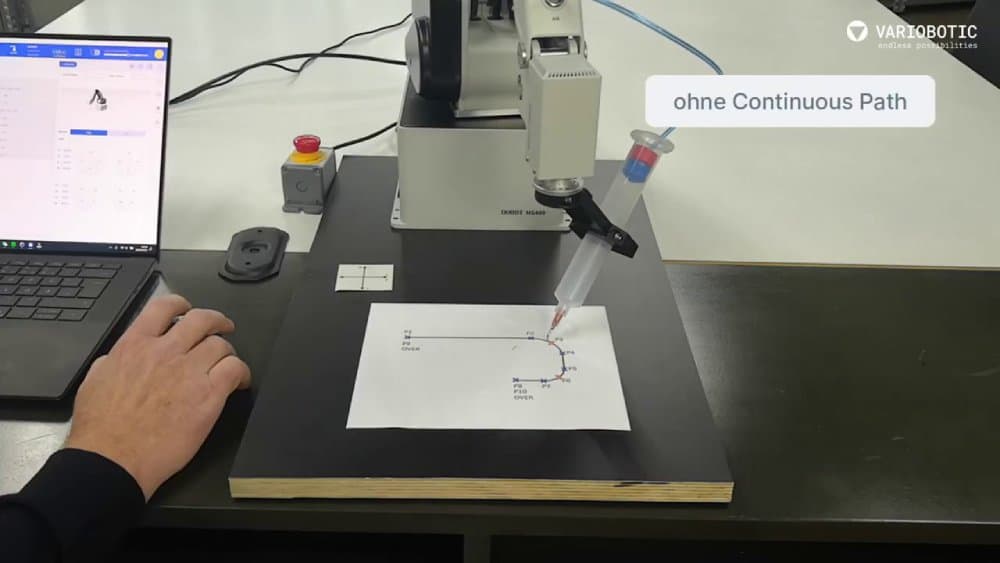

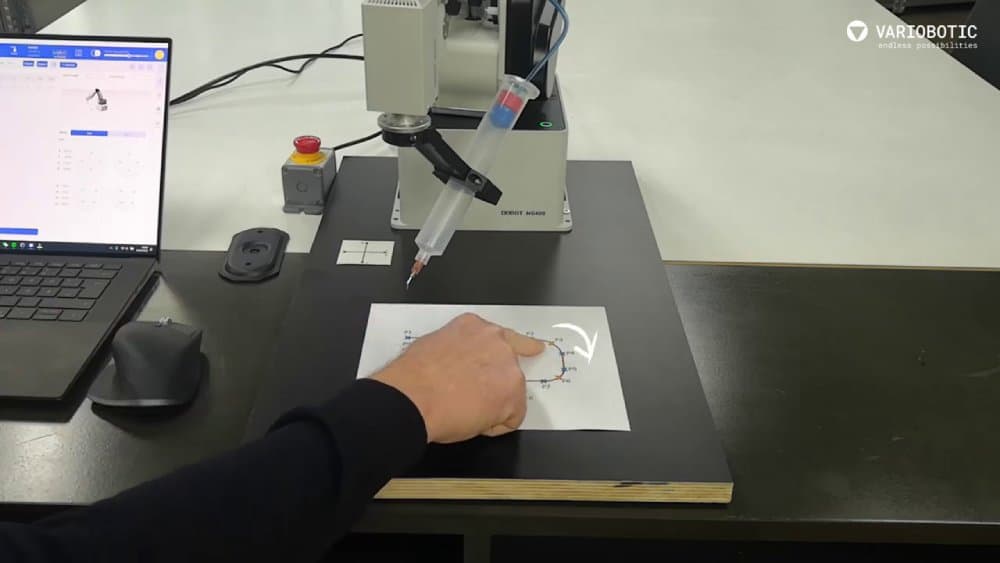

In this video, Variobotic shows you how to implement a simple dispensing task with the DOBOT MG400 industrial robot. The robot has the task of applying a layer of glue to a sheet metal part using a defined point sequence. This sheet metal part will have a sealing strip glued onto it by the DOBOT MG400.
With a weight of 8 kg, the DOBOT MG400 is a lightweight desktop robot with a base area smaller than a piece of A4 paper. It is designed to make automation accessible and affordable for small and medium-sized businesses. With a payload of 750g, a maximum reach of 440mm and hand guidance and collision detection, the MG400 is the perfect robot to implement small automation solutions. An integrated vibration damping algorithm ensures path fidelity of multi-axis movements, improving repeatability by 60% and reducing overshoot by 70%.
1 komponent
